- New unit -

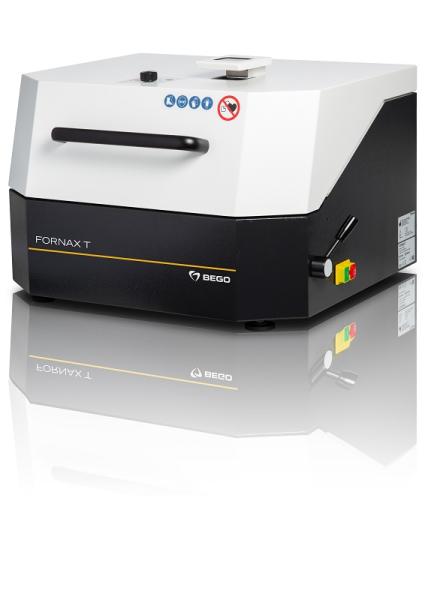

Compact cast iron centrifuge with induction melting device and integrated power cooling.
Compact table-top cast spinner with very powerful induction heating (semiconductor generator).
High power reserves with only 16 amps current consumption,
Casting temperature up to 1,550 °C: ideal for all dental alloys (except titanium)
Heating level switch for ceramic or graphite crucibles
Short casting delay time
Time-saving adjustment to different casting ring sizes due to newly designed adjustment mechanism
Easy-to-use taring device for different investment ring weights
Technical details:
Height 450 mm
Width 650 mm
Depth 625 mm
Rated voltage 230 V, 50/60 Hz
Special voltages 200-240 V, 50/60 Hz
Power consumption approx. 16 A
Induction melting power 3.6 kVA, 65 kHz
Weight 80 kg
Scope of delivery:
1x REF 26425 Fornax T 230 V, 50/60 Hz
1x REF 52482 Ceramic crucible (content: 6 pieces)
1x REF 52454 Graphite inserts (content: 6 pieces)
1x REF 52455 ceramic inserts (content: 6 pieces)
1x cast mould former size 3, 6 and 9 each.
