- New unit -

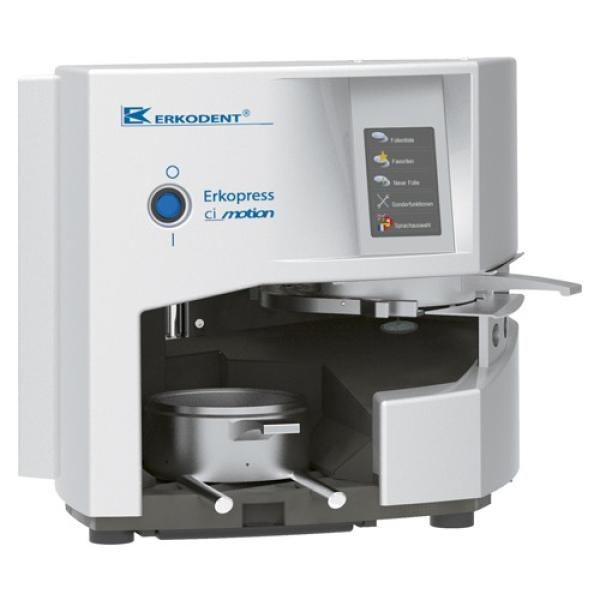

Pressure forming unit with automated thermoforming process, integrated, powerful compressor and reserve compressed air, thus independent of a compressed air system. Medium-wave infrared heater and non-contact temperature sensor for precise determination of the temperature of the thermoforming material.
With touch panel for operating all functions. The program contains all Erkodent thermoforming sheets, guides through the workflow as a short instruction with animations and reports the necessary work steps.
Advantages:
- Integrated, quiet compressor continuously maintains the available pressure;
- After switching on, a constant pressure of 7 bar is built up in the reserve pressure chamber, independent of the programme sequence;
- Mid-wave infrared heater heats the thermoforming sheet also in depth and not only superficially;
- Freely accessible model during heating time;
- Programme-controlled function and sequence;
- Vertical forming for uniform wall thicknesses;
- High working safety due to automatic switch-off;
- Pinch protection during automated moulding.
Technical data:
- Dimensions : 33.0 x 51.0 x 32.0 cm
- Mains voltage : 220-240 V, 50/60 Hz
- Power 440 W
- Working pressure 6 bar
- Suitable thermoforming sheets ø 120 mm, thickness max. 5,5 mm
- Sound pressure level < 71 dB(A)
- Weight : 22,9 kg
Scope of delivery:
- Erkopress ci motion complete with mains cable.
- Foil holder; Foil clamping ring; Moulding pot; Model disc; Granulate collecting container
- 1800 g stainless steel filling granulate; brush for filling granulate; on-off magnet
- Foil test pack.
