- New unit - with control electronics
For one operator and one treatment room.
Therapist = number of treatment places with simultaneous operation.
Room = number of places that can be connected with a simultaneity factor of 60%.

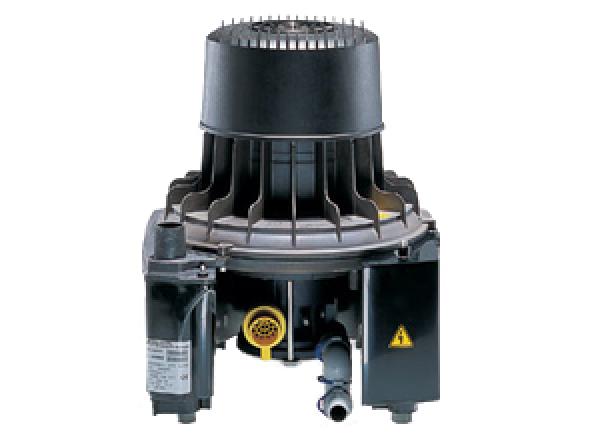

Technical data VS 300 S
- Voltage 230 V 1~
- Frequency 50 - 60 Hz
- Current consumption 2.9 -3.7 A
- Power 0.58 - 0.8 kW
- Speed 2,850 (1/min)
- Negative pressure 180 mbar
- Duty cycle 100% (S1)
- Max. Liquid flow rate 4 l/min
- Sound level approx. 63 - 65 dB(A), with housing approx. 54 - 56 dB(A)
- Dimensions H 37 x W 31 x D 31 cm
- H 51 x W 36 x D 36 cm (with casing)
- Weight 12.5 kg, with housing 20 kg
