- New unit -

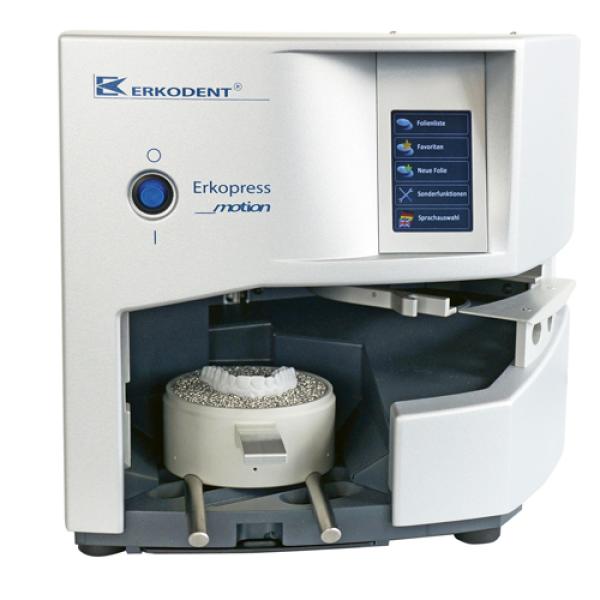

Pressure forming unit with automated thermoforming process, for connection to the compressed air system. Medium-wave infrared heater and non-contact temperature sensor for precise determination of the temperature of the thermoforming material.
Touch panel for operating all functions. The program contains all Erkodent thermoforming sheets, guides through the workflow as a quick guide with animations and reports the necessary work steps.
Advantages:
- Mid-wave infrared heater heats the thermoforming sheet also in depth and not only superficially;
- Freely accessible model during heating time;
- Programme-controlled function and sequence;
- Vertical forming for uniform wall thicknesses;
- High working safety due to automatic switch-off;
- Pinch protection during automated moulding.
Technical data:
- Dimensions : 33.0 x 51.0 x 32.0 cm
- Mains voltage : 220-240 V, 50/60 Hz
- Power 380 W
- Working pressure 6 bar
- Suitable thermoforming sheets ø 120 mm, thickness max. 5.5 mm
- Sound pressure level < 70 dB(A)
- Weight : 20,9 kg
Scope of delivery:
- Erkopress motion complete with mains cable
- Foil holder; Foil clamping ring; Moulding pot; Model disk
- Pressure reducer; Water separator; Granulate collecting container
- 1800 g stainless steel filling granulate; brush for filling granulate; on-off magnet
- Foil test pack.
