-new device-
The system is open and can be used for various materials up to a sintering temperature of 1300 °C
be programmed. There are already two sample programs that can be customized
preset.
- Tmax 1300°C
- Minutes to Tmax 35
- Working temperature up to 1280 °C, depending on the CoCr material used
- Single-phase connection
- Furnace chamber lined with premium, durable fiber material, unclassified
- Double-walled housing made of structural stainless steel sheets for low outside temperatures
- Gassing system with solenoid valve and flow meter
- Rapid cooling via compressed air

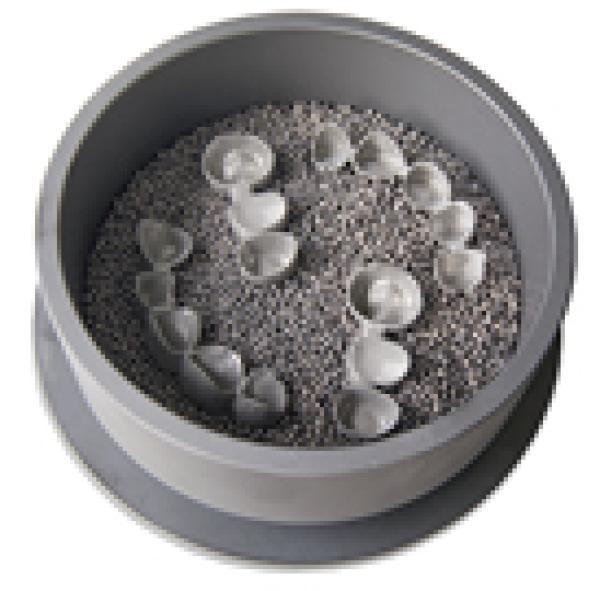

- Sintering bell with good sealing for sintering up to 30 units under argon
- Sintered beads, Ø 1.25 mm (200 g) included in delivery

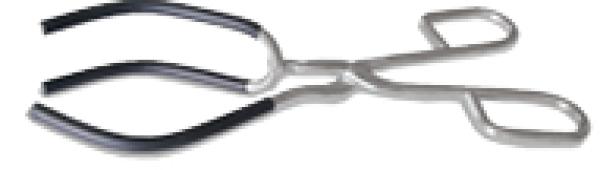

- Special pliers included
- Automatic temperature control and gas supply switching via the C450 controller
- NTLog for Nabertherm controllers: Recording process data with a USB stick
- Switchgear with solid-state relays to control the heating
- Two adjustable gas quantities for optimal coordination with the sintering process
Additional equipment:
- Temperature selector limiter with adjustable switch-off temperature for thermal protection class 2 according to EN 60519-2
- as over-temperature protection for the oven and the goods
- Process control and documentation via VCD software package for monitoring, documentation and control
Dimensions:
- External dimensions in mm: WxDxH2 W 422 x D 320 (430 with compressed air connection for rapid cooling) x H 430+200 with the lifting door open
- Internal dimensions W 130 x D 120 x H 120 mm
- Weight in kg: 25
