-New device - Adjustable via Bluetooth connection and app
- For installation in Freuding technical tables.

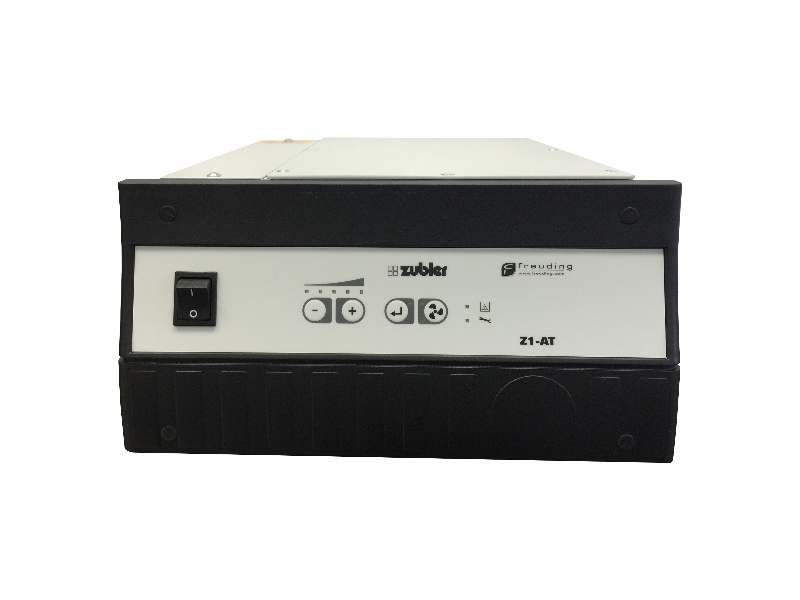

- Z1-AT extraction unit
- When the technical machine starts up, the Z1-AT single-station extraction unit switches on automatically and switches off again with a delay to remove residual dust. An air volume measurement and control system keeps the extraction performance constant regardless of the degree of filter contamination, reduces the energy requirement and minimises noise. If the filter is full and the extraction performance is insufficient, the monitoring electronics switch off the vacuum cleaner and handpiece. Once the filter has been changed, work can continue immediately.
- Latest technology

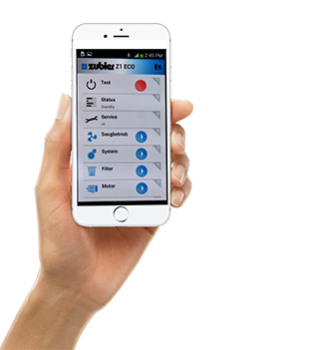

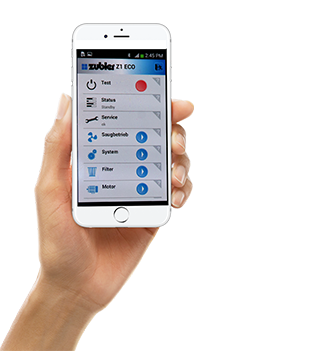

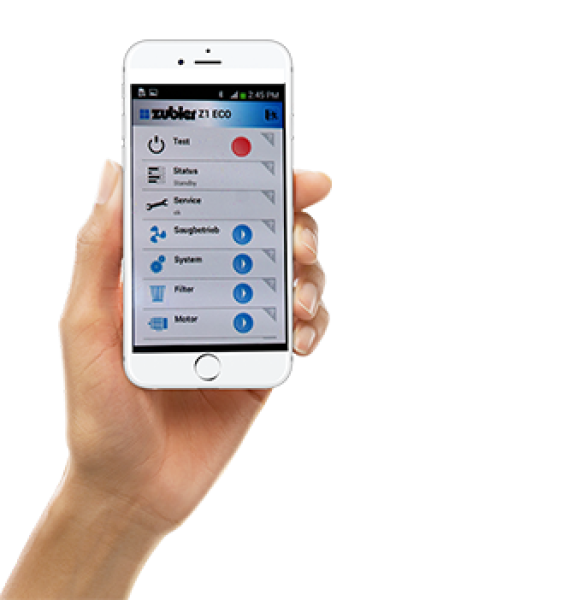

- Adjustable via Zubler app and Bluetooth connection
- Filter and system monitoring via LED displays
- Adjustable suction power level 1 - 4
- Level 5 for short-term maximum operation
- Automatic switch-on
- Filter bag and ultra-fine filter
- Suction capacity working range 20 - 35 l/sec.
- Noise level 52-61 dB(A)
- 5000 hours guaranteed motor service life
- compatible with Freuding extraction systems A82/A84/A84-S/A-84-SR/AT

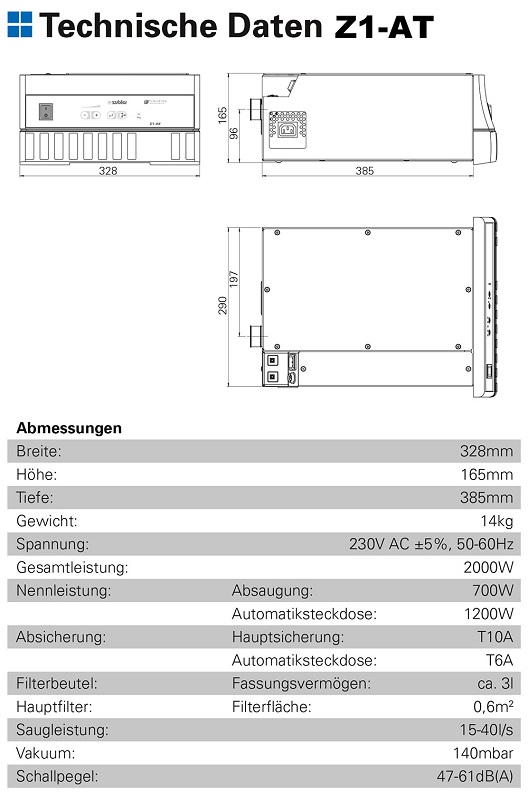

Technical data:
Mains voltage 230 V
Motor input power 700 watts
Automatic socket 1200 Watt
Motor current max 3.2 A
Level 1/2/3/4 corresponds to 20/23/30/35 litres/sec.
Level 5 = max 40 litres/sec.
Weight 15 kg
Width 328 mm
Height 165 mm
Depth 385 mm
Scope of delivery : Single-pallet extraction unit Z1-AT
When using KaVo K-Control, the system must be retrofitted for an additional charge!
