- New -

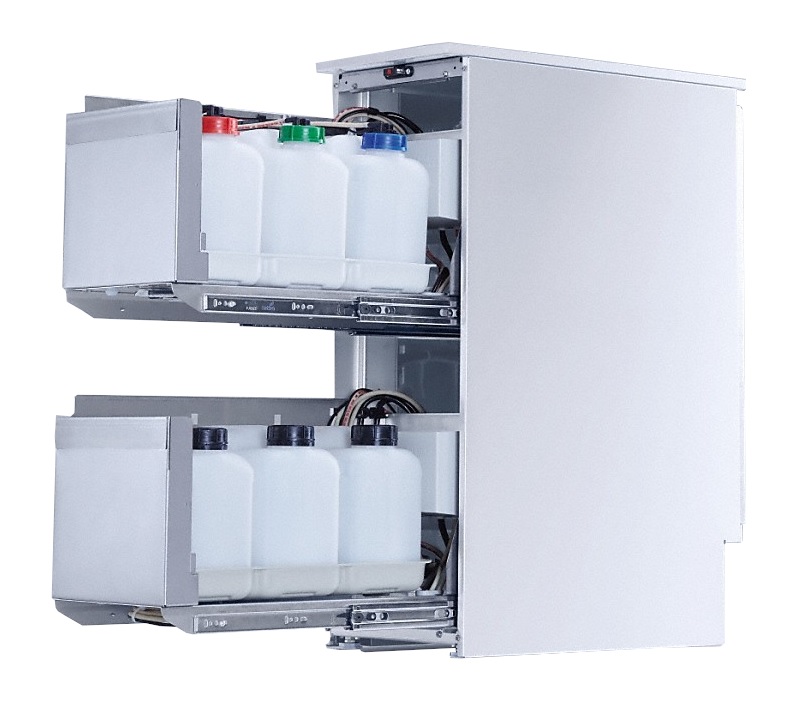

Storage cabinet for process chemicals and dosing modules.
For PG 8581 and PG 8591.
H 835 (820), W 300, D 600 mm
Compatible with PG 8581 and PG 8591
Free-standing unit, can be underbuilt
Cabinet with removable door
White outer panelling(AW)
Internal dimensions: H 690/380/285 mm (upper drawer removed/lower/upper/drawer), W 250 mm, D 555/425 mm (without/with drip tray and dosing modules)
Divided into 2 levels:
Drawers can be pulled out, guided on telescopic rails, with drip tray for holding storage containers with process chemicals.
Canister sizes (length x W x H)
A total of 6 canisters of 5 l each (245 x 145 x 225 mm*) can be accommodated.
The lower drawer also offers the possibility of accommodating larger containers:
2 á 10 l: 140 x 193 x 307 mm
2 á 10 l: 223 x 203 x 321 mm
2 á 10 l: 229 x 193 x 323 mm
2 á 10 l: 194 x 204 x 353 mm
1 á 20 l: 289 x 233 x 396 mm
1 á 25 l: 288 x 234 x 456 mm
*Only possible with dosing module DOS K 85/1 with short suction lance.
