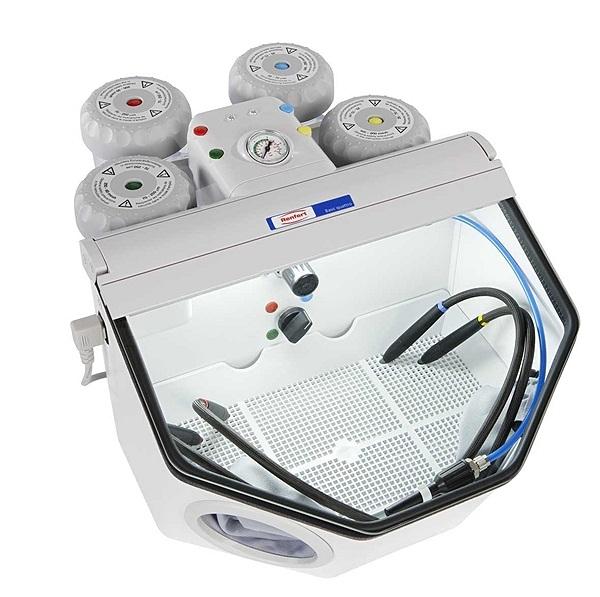

- new device -
Easy tank expansion without tools via quick couplings and color coding system
Integrated blow-out nozzle for cleaning objects and hands
Large-volume blasting chamber (20l) offers great freedom of movement
Use of Rocatec™ (approved by 3M ESPE exclusively for Renfert blasting machines)
Technical data :
- Working pressure 1 - 8 bar
- Connection pressure 5 - 8 bar
- Air consumption 98 l/min. at 6 bar
- Mains voltage 230 V
- Cable length 2 m
- Hose connection Ø inside 4 mm, outside 6 mm
- Suction port connection for external suction Ø inside 35 mm, outside 40 mm
- Blast chamber volume 20 l
- Capacity of tanks: 1000 ml each
- Dimensions (WxHxD) 395 x 285 x 465 mm
- Weight unfilled approx. 8.9 kg
Scope of delivery :
- Basic quattro with 2 blast tanks
- Includes jet nozzle 0.8 mm and 1.2 mm
- Footswitch
- Connection set
- Operating instructions with attachments
- Power cord
- Includes 2 bags of blasting media
