- New device -
The 6th generation of the BIOSTAR® unit is now equipped with a scanner. A corresponding barcode containing all relevant data for correct heating and cooling of the thermoforming material is printed on each SCHEU sheet and is automatically detected by the new BIOSTAR® unit. In combination with the fast heating of the radiator (approx. 1 second), thermoforming processes cannot be faster and more process-safe than in the new BIOSTAR.D
Advantages :
- Already at operating temperature after 1 second
- Thermostatic heater control
- Working pressure 6 bar
- With scan technology
- Database with information on scanned films and indications
- Illustrated application instructions and video animations
- Interface for easy updates

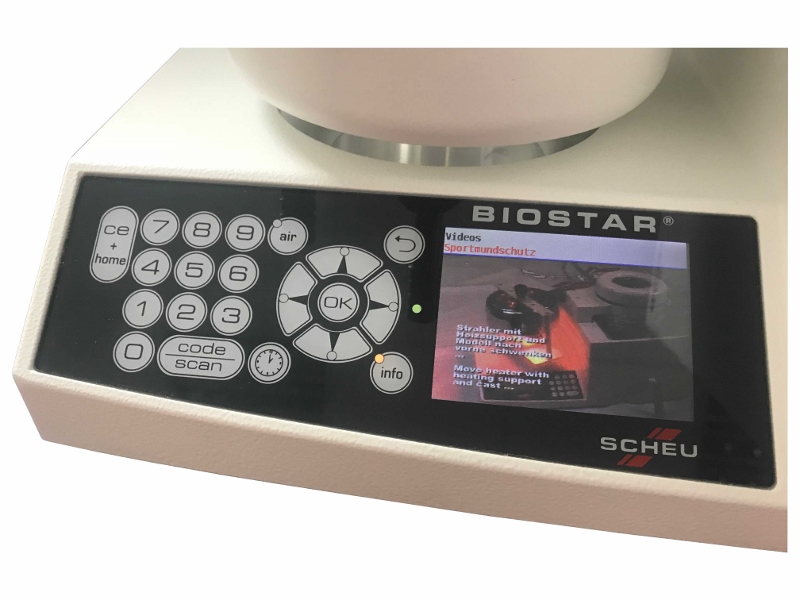

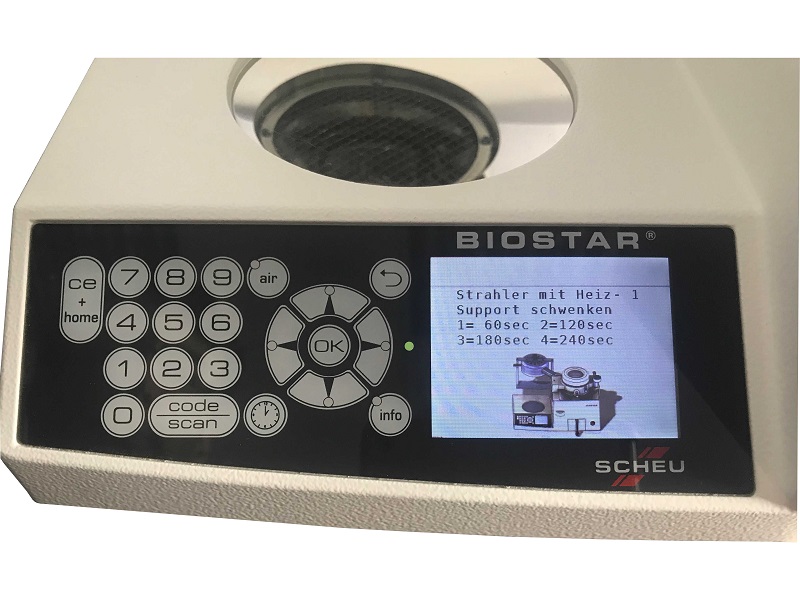

- Colour 3.2" LCD display
- Input of desired heating programmes
- Acoustic and optical control of heating and cooling times as well as all work steps
- Ergonomic granulate container for controlled embedding
Technical data:
- Mains voltage 230 V
- Power 750 W
- Working pressure 0.5 - 6.0 bar
- WxDxH 520x440x240 mm
- Weight 14 kg
- Scope of delivery:
- Biostar complete with 1.7 kg filling granulate, film sample book and dust cover.
