- New device -

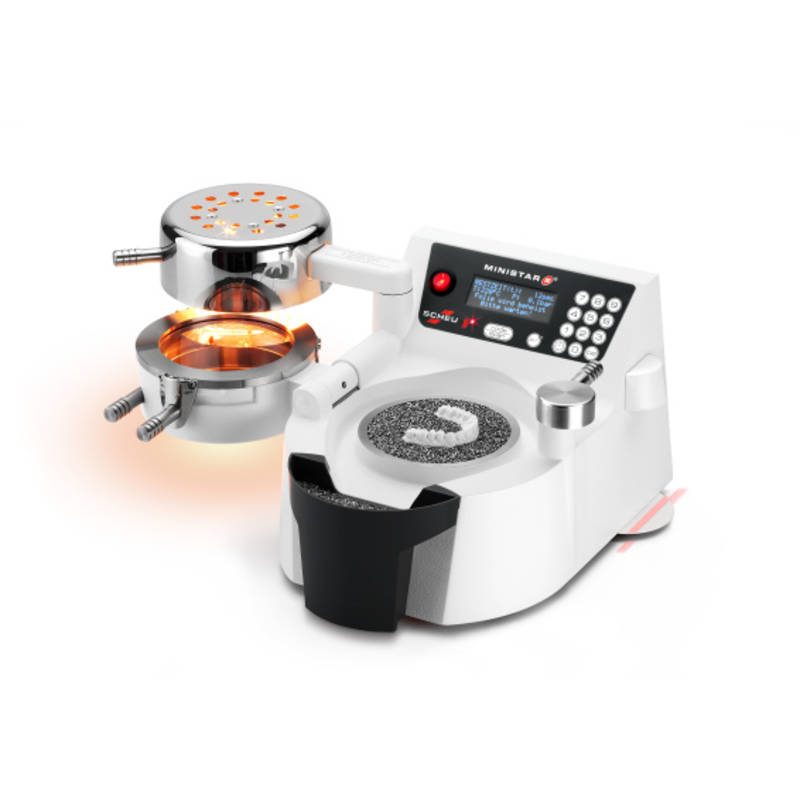

new model with larger display!

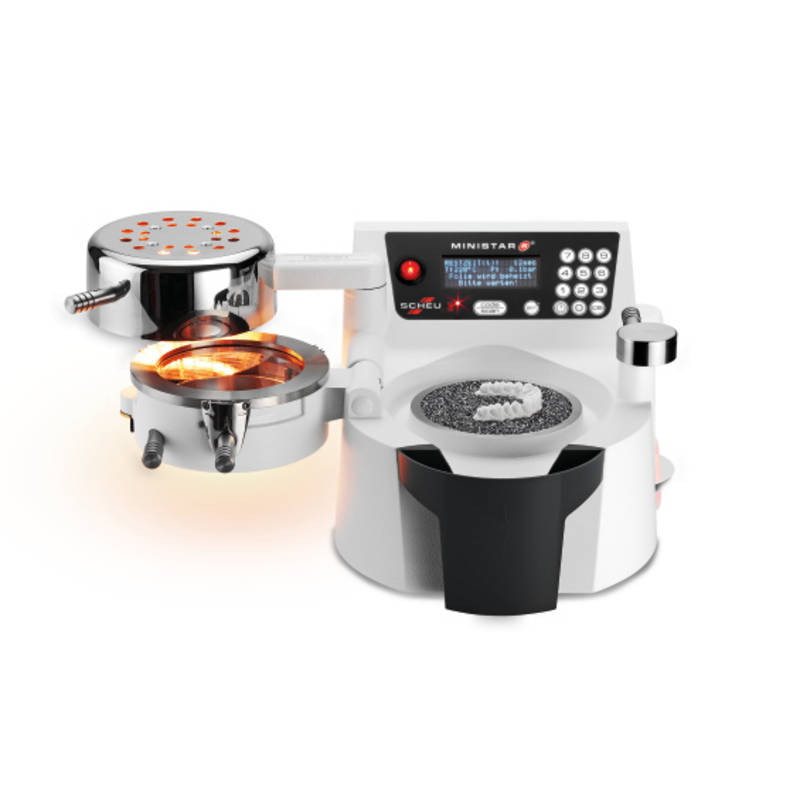

Compact printing forming device with scanner technology and an increased working pressure of 4 bar.
All important functional parameters are transferred directly to the device by reading the film barcode.
In conjunction with the rapid heating of the thermally controlled infrared emitter, deep-drawing processes can be carried out quickly and reliably.
Additional visual and acoustic messages guarantee perfect and precise results.
The ergonomic granulate container holds up to 1 kg of filling granules and allows perfect dosage.
Advantages :
- Operating temperature after 1 second
- All important functional parameters are transferred directly to the device by reading the film barcode
- Thermostatic radiator control
- Enter the desired heating times
- Acoustic and visual control of heating and cooling times
- Ergonomic granulate container for controlled embedding
- Deep, circumferential channel for collecting and returning excess granules
- Attractive and modern design
- Free on-site instruction (on request)
- 3 year guarantee
Technical data :
- Mains voltage: 230 V
- Power: 850W
- Working pressure: 0.5 - 4 bar
- Dimensions: (W × H × D): 500 × 210 × 400 mm
- Weight: 9kg
Scope of delivery:
Ministar S Scan complete with power cable; 1.7 kg filling granules; silicone grease; Brush and foil sample book
